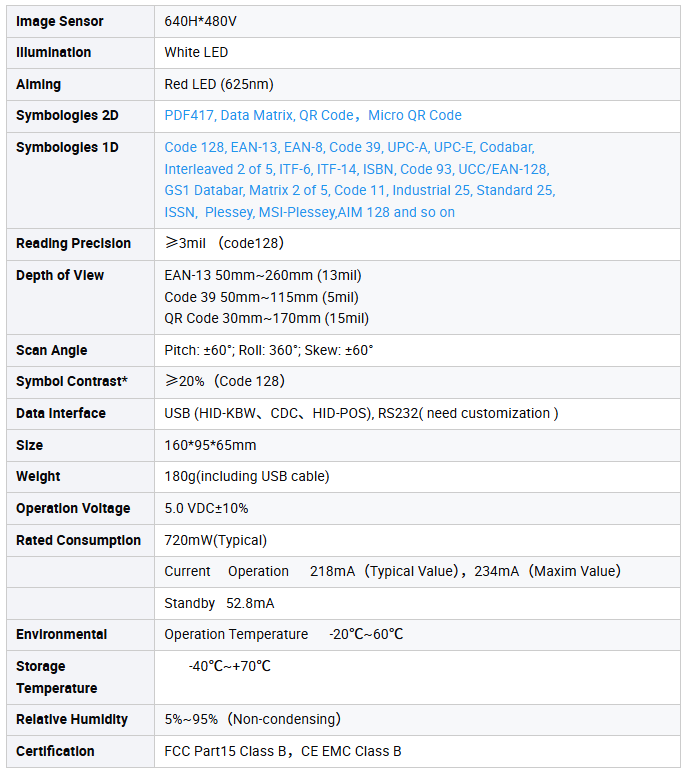

Image sensor: 640H*480V
Illumination: White LED
Focus: Red LED
Communication interface: USB direct line (USB HID KBW, USB virtual serial port), RS232 (optional)

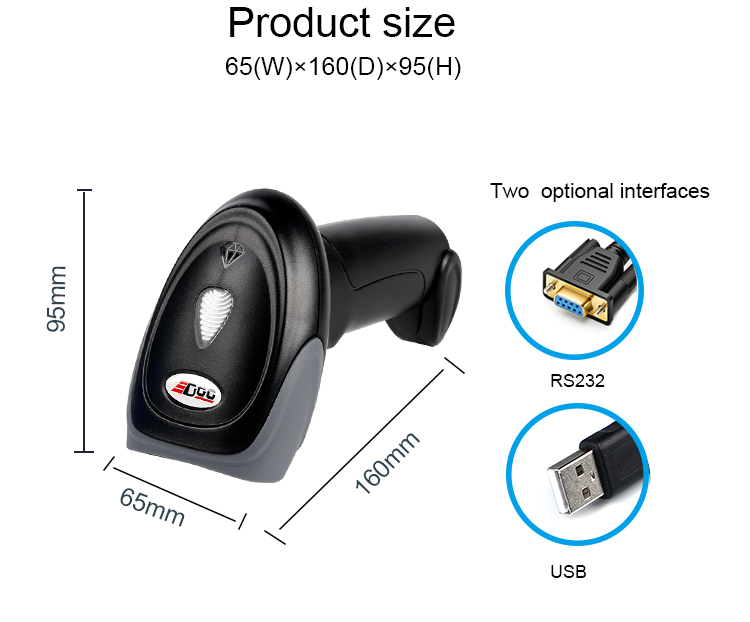

Dimensions (mm): 160*95*65mm’
Weight: 180g (including USB cable)
Operating voltage: 5.0 VDC±5%
Current: @5.0 VDC
Operating current: 272mA
Standby current: 33mA

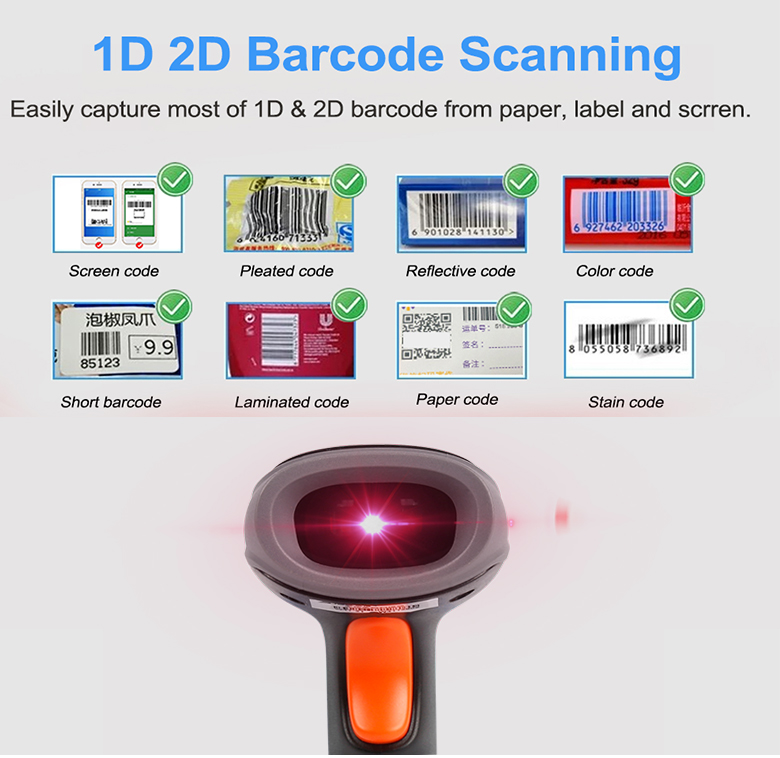

Excellent screen code reading ability
Designed for barcode payment, it can quickly read payment codes, electronic coupons, coupons, etc. on the screen of mobile devices, and can meet the use in high-traffic cashier environments.
Rich interfaces
Supports multiple communication methods such as USB keyboard, virtual serial port, etc., and can also customize RS232 interface as needed.

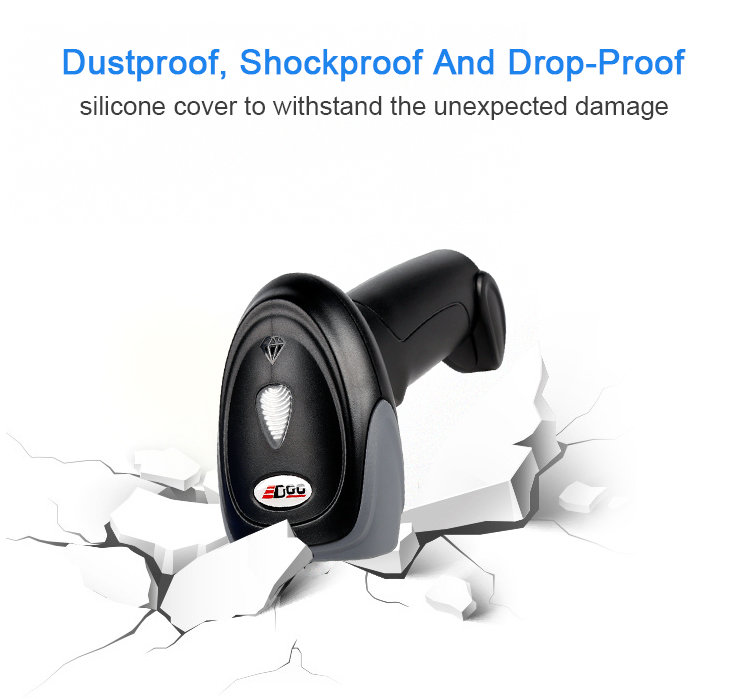

High environmental adaptability
Applicable to various lighting environments (including completely dark environments), high temperature and humidity, and various harsh and complex working environments, such as: impact, vibration, and strong exposure.
Multi-platform compatibility
Fully compatible with mainstream Windows systems, Android systems, and Linux systems.
Application scenarios
Retail, hospital, daily office, warehousing application sites; as well as various barcode payment and O2O QR code coupon verification applications.

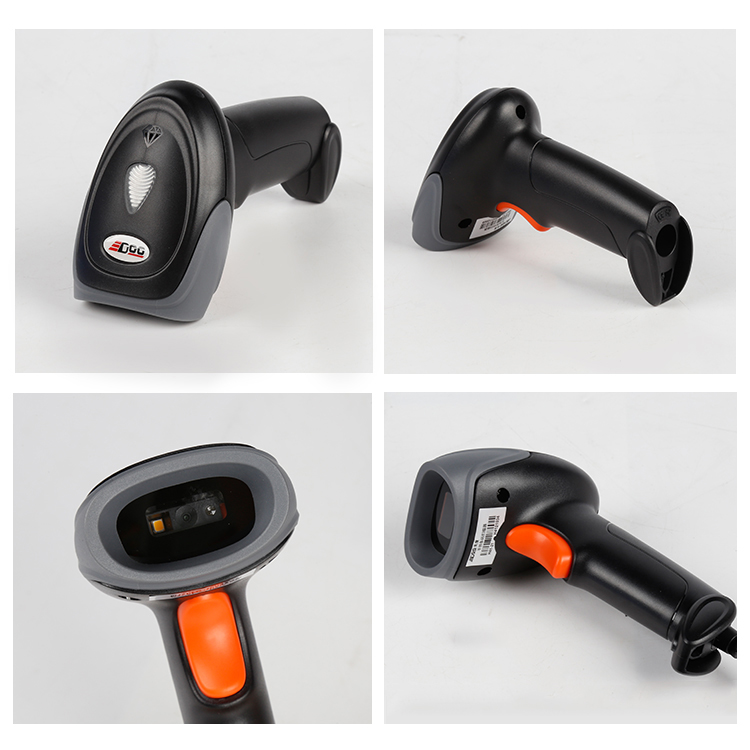

The H41-11 Handheld Barcode Scanner is designed to handle fast and efficient scanning in busy environments such as retail stores, hospitals, and warehouses. It can quickly read mobile payment codes, QR codes, and e-coupons directly from smartphones and other mobile devices, streamlining transactions and operations.
