EDOO ED809 80mm Thermal USB Receipt Printer POS Invoice and Ticket Vending Machine for Supermarket Restaurant Stock Available

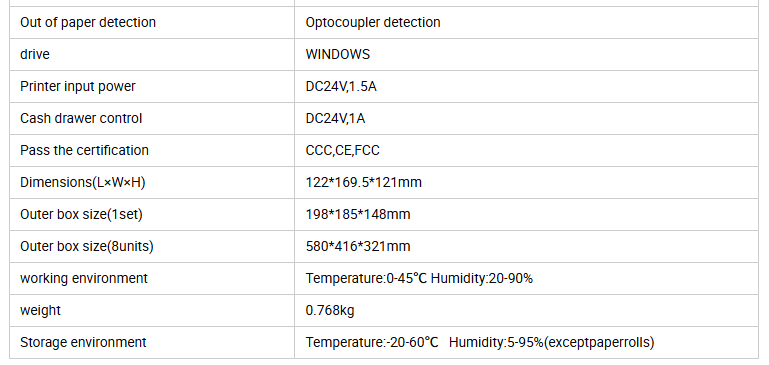

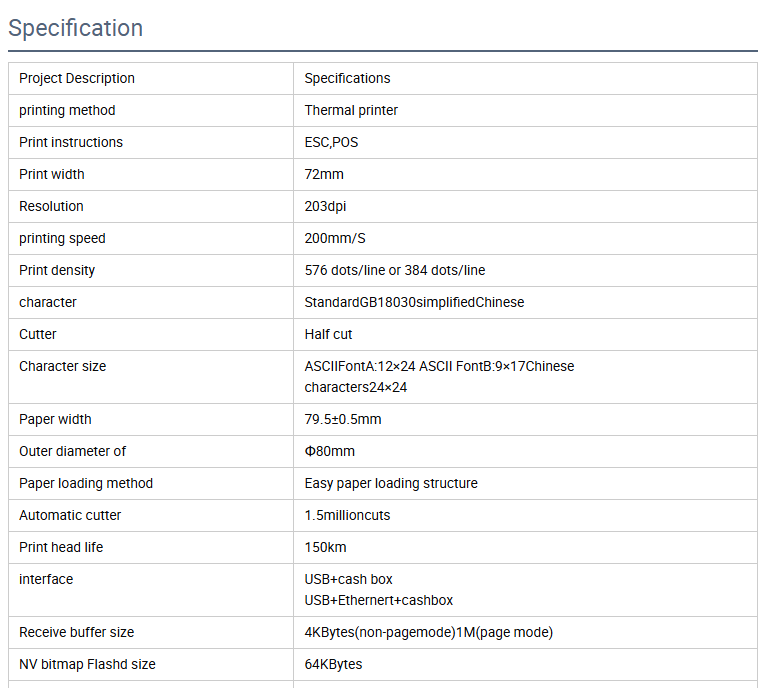

Project Description Specifications printing method Thermal printer Print instructions ESC ,POS Print width 72mm Resolution 203dpi printing speed 200mm/S Print density 576 dots/line or 384 dots/line character Standard GB18030 simplified Chinese Cutter Half cut Character size ASCII Font A: 12×24 ASCII Font B: 9×17Chinese characters 24×24 Paper width 79.5±0.5mm Outer diameter of Φ80mm Paper loading method Easy paper loading structure Automatic cutter 1.5 million cuts Print head life 150 km nterface USB+cash box USB+Ethernert+cash box Receive buffer size 4KBytes (non-page mode) 1M (page mode) NV bitmap Flashd size 64KBytes Out of paper detection Optocoupler detection drive WINDOWS Printer input power DC 24V, 1.5A Cash drawer control DC 24V, 1A Pass the certification CCC,CE, FCC Dimensions (L × W × H) 122*169.5*121mm Outer box size (1 set) 198*185*148mm Outer box size (8 units) 580*416*321mm weight 0.768kg working environment Temperature: 0-45℃ Humidity: 20-90% Storage environment Temperature: -20-60℃ Humidity: 5-95% (except paper rolls)
