When your embedded device needs fast and reliable barcode recognition, choosing the right barcode reader engine directly affects scanning performance, integration time, and device usability. A module that struggles with low-brightness screens, damaged codes, or limited interfaces can create unnecessary development work. For PDA, tablets, kiosks, access control systems, and ticket verification equipment, you need a compact engine that delivers reliable 1D/2D decoding while fitting your hardware design.

What Is a Barcode Reader Engine?

A barcode reader engine is the core scanning component inside an embedded barcode device. Instead of using a complete handheld scanner, you can integrate the engine into your own equipment and connect it to the required interface.

The EDOO E5-32 is designed for this type of application. Shenzhen Edoo-IOT Technology Co., Ltd. combines its self-developed decoding technology with a compact split-design structure, allowing you to integrate the scanning engine and interface board according to your hardware requirements.

Key specifications include:

• 640 × 480 CMOS sensor

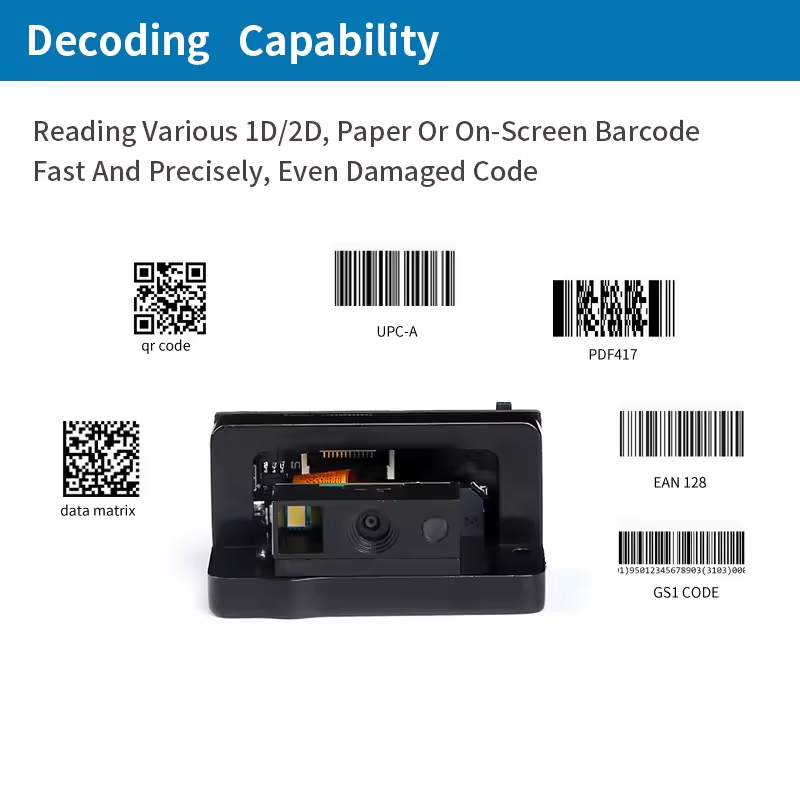

• 1D and 2D barcode decoding

• QR, PDF417, Data Matrix, Aztec and other code formats

• USB HID / Virtual COM interface

• TTL-232 interface

• Customizable RS-232 interface

• 38.8 × 22.5 × 19.5 mm dimensions

• 3.2mA standby current

• 115mA operating current

• -20°C to 60°C operating temperature

Why Choose an Embedded Barcode Reader Engine?

Your application may require more than basic barcode recognition. In real-world equipment, the scanner must handle different surfaces, screen conditions, installation angles, and power constraints.

1. Reliable Screen Barcode Scanning

The E5-32 is optimized for reading barcodes displayed on mobile screens. It can recognize codes even when protective film creates reflections or when the display operates at very low brightness.

This makes the module suitable for mobile ticket verification, access control, customer service terminals, and self-service kiosks.

2. Compact Design for Embedded Equipment

With dimensions of only 38.8 × 22.5 × 19.5 mm, the E5-32 can fit into compact hardware where a conventional handheld barcode scanner would be impractical.

The split engine-and-interface-board structure also gives you greater flexibility during product development.

3. Multiple Interface Options

Different embedded devices use different communication architectures. The E5-32 supports USB and TTL-232, while RS-232 can be customized for specific integration requirements.

This gives you more flexibility when developing PDA, tablet, kiosk, AFC, toll gate, or access control equipment.

How to Integrate an OEM Barcode Reader Engine

You can simplify the development process by following a structured integration workflow.

1. Define your application
   Identify the barcode types, scanning distance, installation space, operating temperature, and target equipment.

2. Confirm the interface
   Select USB, TTL-232, or discuss a customized RS-232 interface with the supplier.

3. Check mechanical dimensions
   Reserve suitable space for the 38.8 × 22.5 × 19.5 mm E5-32 module and mounting structure.

4. Test real barcode conditions
   Evaluate QR codes, PDF417, Data Matrix, damaged barcodes, and mobile screen codes under actual lighting conditions.

5. Complete prototype evaluation
   Test the module inside your enclosure before moving toward mass production.

6. Discuss OEM/ODM requirements
   If you need mechanical, electrical, or functional modifications, work with the manufacturer during the development stage.

EDOO's OEM and ODM Capabilities

Shenzhen Edoo-IOT Technology Co., Ltd. has specialized in IoT devices since 2015 and provides barcode scanning products for logistics, healthcare, education, insurance, government, transportation, tobacco, and retail applications.

The company states that its R&D team includes senior technical experts and that it holds dozens of national patents. Its product portfolio covers handheld barcode scanners, wearable scanners, fixed-mount scanners, desktop scanners, barcode scan engines, industrial PDAs, tablets, printers, and RFID products.

For quality and market compliance, EDOO's listed qualifications include CE certification for barcode scanner modules, CE certificates for M73 and M93 PDA terminals, and RoHS certification.

For OEM and ODM projects, EDOO can support the process from concept development and prototype evaluation through manufacturing and final delivery.

FAQ

Can the E5-32 read QR codes from mobile screens?

Yes. The E5-32 is optimized for screen-based barcode scanning and can read QR and other supported codes from mobile displays, including situations involving protective film and low screen brightness.

What interfaces does the E5-32 support?

The module supports USB HID/Virtual COM and TTL-232. EDOO also provides customizable RS-232 options for specific integration requirements.

Is the E5-32 suitable for battery-powered devices?

Yes. Its standby current is only 3.2mA, while operating current is approximately 115mA, making it suitable for applications where power consumption is an important design consideration.

Conclusion

Selecting the right barcode reader engine helps you build a more compact, flexible, and application-specific scanning device. With 1D/2D decoding, mobile screen scanning, multiple interfaces, a compact 38.8 × 22.5 × 19.5 mm design, and low standby power consumption, the EDOO E5-32 is designed for embedded applications such as PDA, tablets, kiosks, access control, ticket verification, and other self-service terminals.

Get an OEM Barcode Reader Engine Solution

If you are developing a PDA, kiosk, access control terminal, ticketing device, or other embedded product, contact Shenzhen Edoo-IOT Technology to discuss your required barcode types, interface, dimensions, power requirements, and OEM/ODM specifications. Request the E5-32 datasheet and prototype evaluation before finalizing your hardware design.
