EDOO D46 |High-Performance Desktop Barcode Scanner for Retail
EDOO D46 |High-Performance Desktop Barcode Scanner for Retail

EDOO D46 |High-Performance Desktop Barcode Scanner for Retail

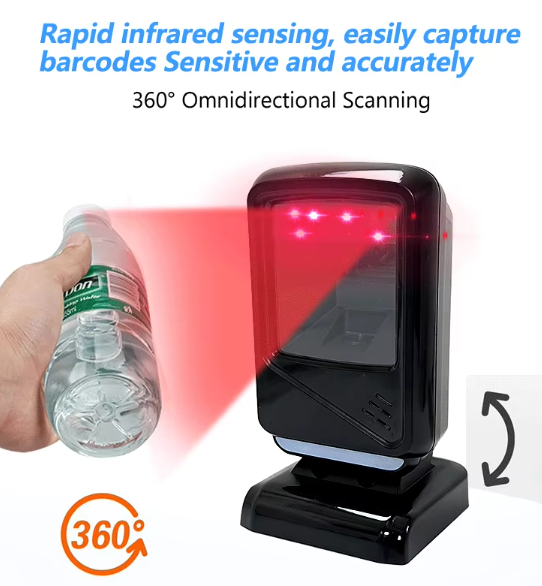

  • Easily rotate freely from a large angle

        User can adjust the scanning angle according to their usage habits

  • Strong 1D&2D Barcodes Decoding Ability

    1D barcode scanner support scan most of 1D barcodes, such as EAN, UPC, Code 39, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, MSI-Plessey, GS1 Databar, Code 11, Industrial 25, Strong 1D&2D Barcodes Decoding Ability Standard 25, Plessey, Matrix 2 of 5. all 2D barcoes

  • Fashionable design Small and light weight

    User can freely grab the scanner and scan the barcode Fashionable design Small and light weight of item further away from the counter

  • Ultra fast decoding system

    The most advanced decoding algorithm is adopted, which can quickly decode various types of barcodes and quickly transmit them to various terminal devices

  • Multiple Configuration Options

    This wireless barcode scanner support instant upload and storage mode two types upload modes, hide front and back characters, add prefix or suffix, set sleep time, set sound and vibration, etc useful function. You can set Ultra fast decoding system Multiple Configuration Options these functions according to your needs.

Online consultation Datasheet

Product Details

EDOO D46 | Dual-CPU Desktop 2D Barcode Scanner



The EDOO D46 is a fashionable and lightweight desktop barcode scanner designed for high-performance 1D/2D scanning. Featuring a Dual-CPU architecture, it provides ultra-fast decoding and precise recognition for various barcodes, including those on mobile screens.


     Technical Specifications

PerformanceImage Sensor
640*480 CMOS

Illumination
Red LED

Symbologies2DQR code,Data Matrix, PDF417, Aztec code. Maxi Code All 2D barcodes


1DUPC-A UPC-E EAN-8 EAN-13 ISSN ISBN Code 128 GS1-128 ISBT 128 Code 39 Code 93 Code 11 Interleaved 2 of 5 Matrix 2 of 5 Industrial 2
of 5 Standard 2 of 5 IATA code32,Codabar NW-7 Plessey MSI Plessey RSS China Post

Scan Precision*
≥3mil(Code 128)

Typical Depth of View*EAN-13(13mil)55mm-305mm


QR Code (15mil)50mm-225mm

Scan sensitivity**Pitch±47°


Tilt360°


Skew±43°

Field Angle
Horizontal 68°,Vertical 51°,Diagonal 84.8°

Symbol Contrast*
≥30%(Code 128)
Mechanical/
Electronic
Data Interface
USB HID-KBW、USB Virtual Serial Interface、USB HID-POS、RS232(optional)

Size(mm)
150*80*50

Weight
0.45g

Indicator
Beeper

Operation Voltage
5.0 VDC±5%

Current@5VDCOperation427mA(Typical Value)


Standby55mA
EnvironmentalOperation Temperature
-20℃~+60℃

Storage Temperature
-40℃~+70℃

Relative Humidity
5%~95%(Non-condensing)

Static Protection
±8 kV(Air Discharge),±4 kV(Direct Discharge)

Drop Height
1.5meters fall into concrete for several times

Protection Level
IP42
Certification

CE FCC ROHS GS


EDOO D46 Desktop Barcode Scanner Dual-CPU Desktop 2D
