EDOO E5-32 Embedded 2D Barcode Scanner Module - 3.2mA Ultra-Low Standby Power

Ring Barcode Scanner Fixed Mount Scanner Desktop Scanner Handheld Barcode Scanner Barcode Scan Engine PDA/POS Industrial Intelligence Printer Cash Register: * * *

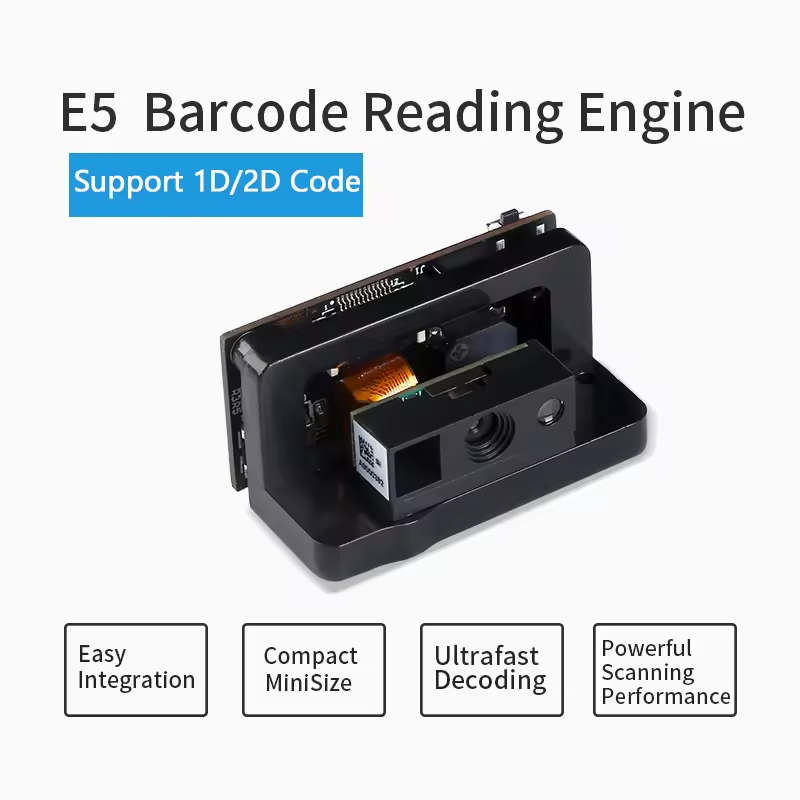

EDOO E5 Replace 5X80 OEM Small Barcode Scanner Module for Embedded Device

Feature

 Core Technology Adopt the self-developed core decoding technology, with excellent decoding capabilities for 1D/2D.

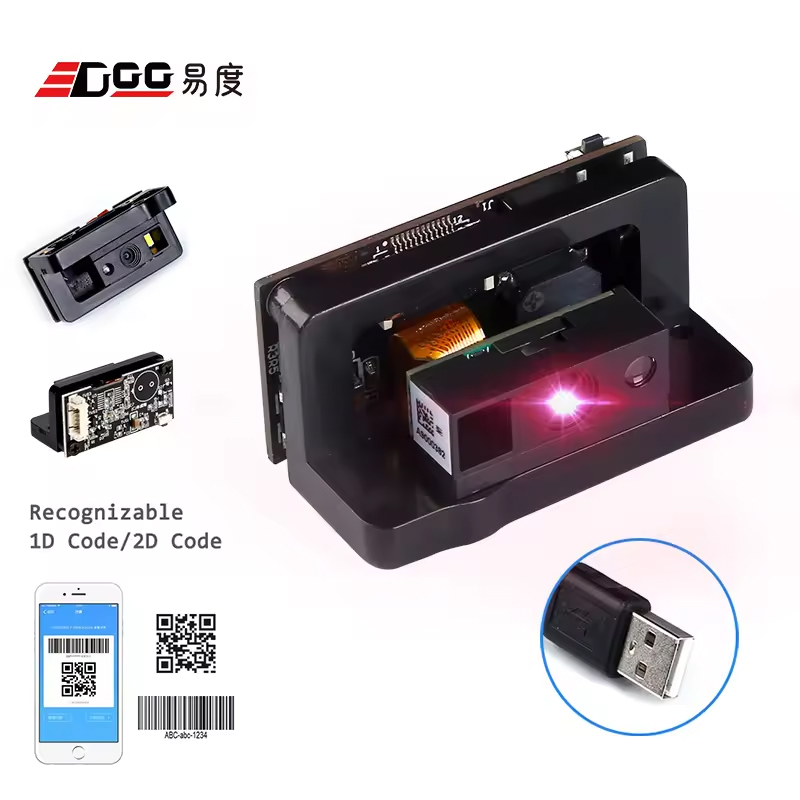

 Snappy On-Screen Barcode Capture The engine excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.  Split Design Separate engine and interface board design, can be used according to the need to remove the bracket.

 Multiple Interfaces To provide USB or TTL-232 or RS-232(need customization) interface, to meet different interface requests.

Application Scenarios:

It’s widely used in PDA, Tablet, AFC, toll gate, access control, express delivery cabinet, ticket verification device, customer service center, and other self-service terminals (kiosks)

Online consultation Datasheet

Product Details

Technical Specifications: EDOO E5-32

Sensor	640 × 480 CMOS
Interface	USB (HID/Virtual COM), TTL-232, RS-232 (Customizable)
Field of View (FOV)	Horizontal 44°, Vertical 33.2°
Scanning Angles	Roll 360°, Pitch ±50°, Skew ±60°
Ultra-Low Power	Standby current 3.2mA, Operating 115mA (Ideal for battery devices)

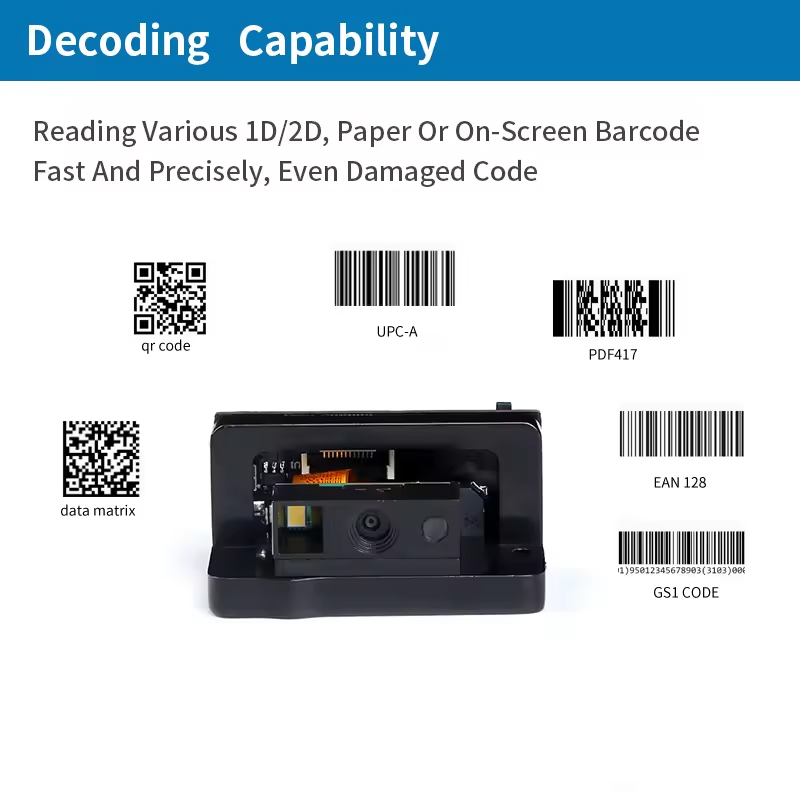

Supported Codes	1D & 2D (QR, PDF417, Data Matrix, Aztec, etc.)
Special Features	Optimized for mobile screen scanning and damaged/high-density barcodes.
Dimensions	38.8 x 22.5 x 19.5 mm
Operating Temp	-20℃ to 60℃

Frequently Asked Questions

Q1: Does it support mobile screen code scanning?
A1: Yes, the E5-32 is optimized for reading barcode and QR codes from mobile screens even with high reflection.

Q2: What is the standby power consumption?
A2: The module features ultra-low power consumption with a standby current of only 3.2mA.

Q3: Which interfaces are available?
A3: It supports USB and TTL-232 (with optional RS-232 customization) for seamless integration.
