EDOO ED3102 80mm Embedded Thermal Receipt Printer for Kiosk & POS

Key Specifications:

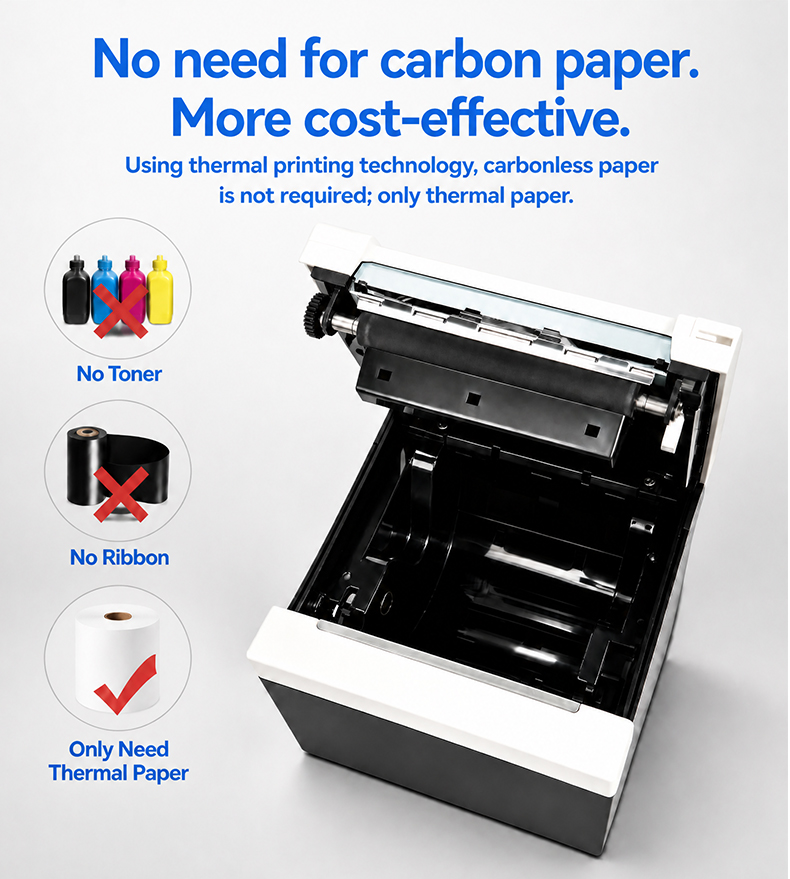

Print Method: Direct thermal line printing (no ribbon, no toner)
Resolution: 203 dpi (8 dots / mm)
Print Width: 80 mm maximum, 72 mm default

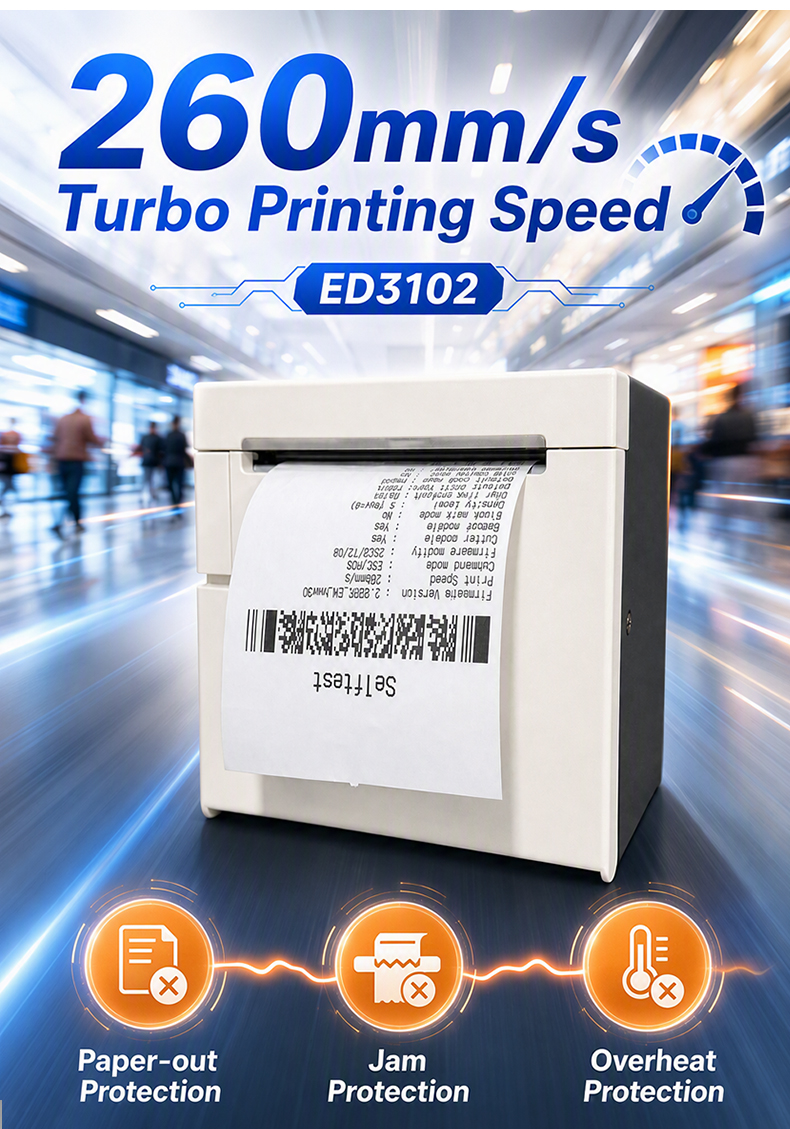

Print Speed: Up to 260 mm/s

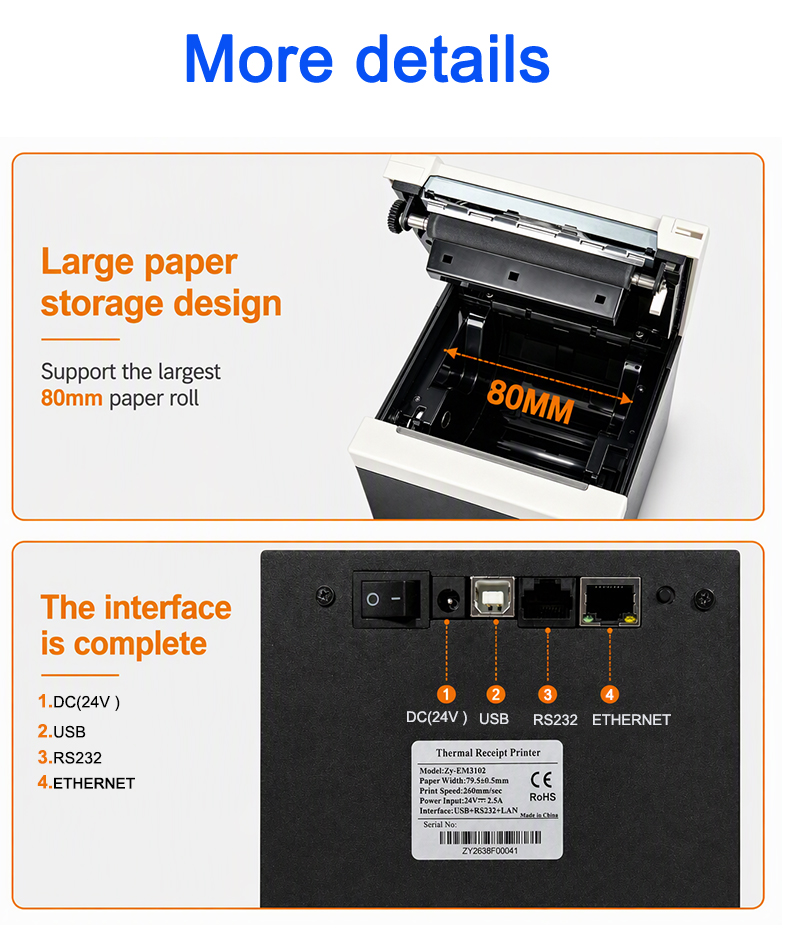

Interfaces: USB + RS232 + LAN (Ethernet)
Cutter: Automatic partial-cut, 2,000,000 cycles
Paper Roll: 58 mm / 80 mm thermal receipt paper, max diameter 82 mm
Print Head Life: 150 km
Command Set: ESC/POS

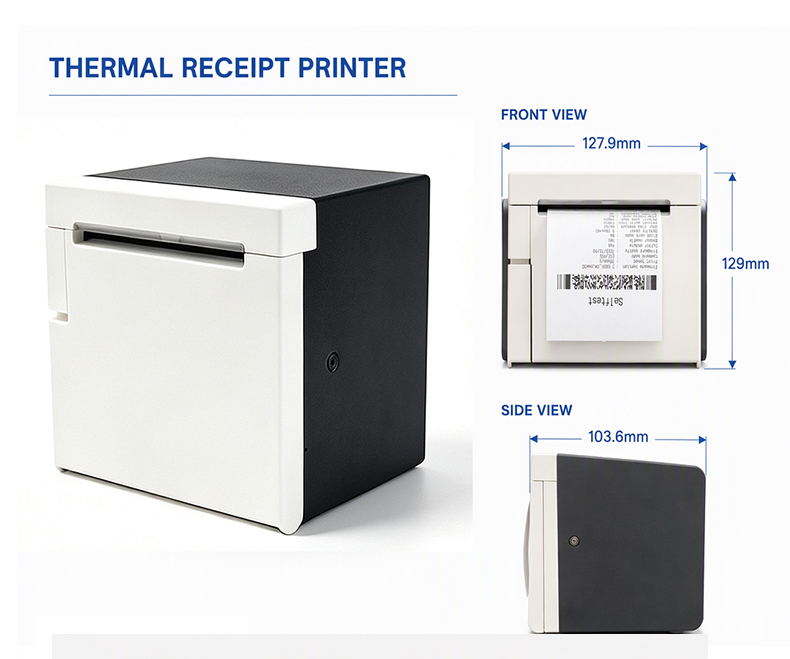

Dimensions: 127.9 (D) x 103.6 (W) x 129 (H) mm, net weight 1.0 kg
Systems & SDK: Windows / Linux / Mac; Android, iOS and Windows SDK

Description:

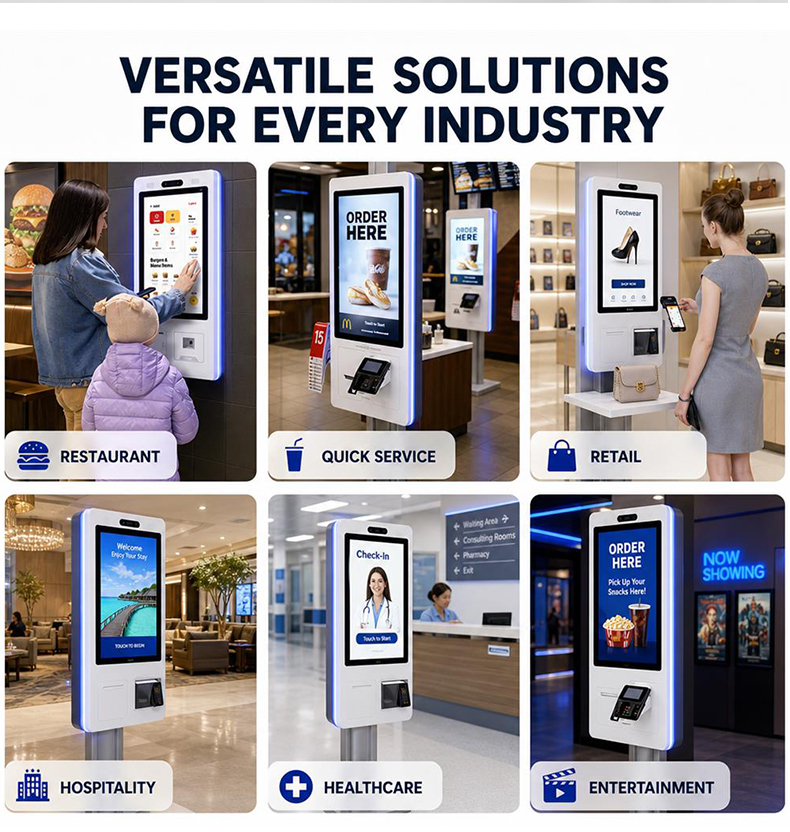

The EDOO ED3102 is a 3-inch embedded thermal receipt printer built for self-service kiosks, POS terminals and OEM equipment. Its compact panel-mount body, anti-mistake opening safety lock and front paper exit make integration straightforward, while the 260 mm/s print engine and built-in auto partial cutter keep queues moving.

USB, RS232 and LAN are combined on one rear panel, the 4 MB input buffer supports continuous high-volume output, and the standard ESC/POS command set plus Android / iOS / Windows SDK cover both embedded and desktop deployment. Paper-out, cover-open and over-temperature sensors protect the mechanism, and the 150 km print head with a 2,000,000-cycle cutter is rated for unattended public use.

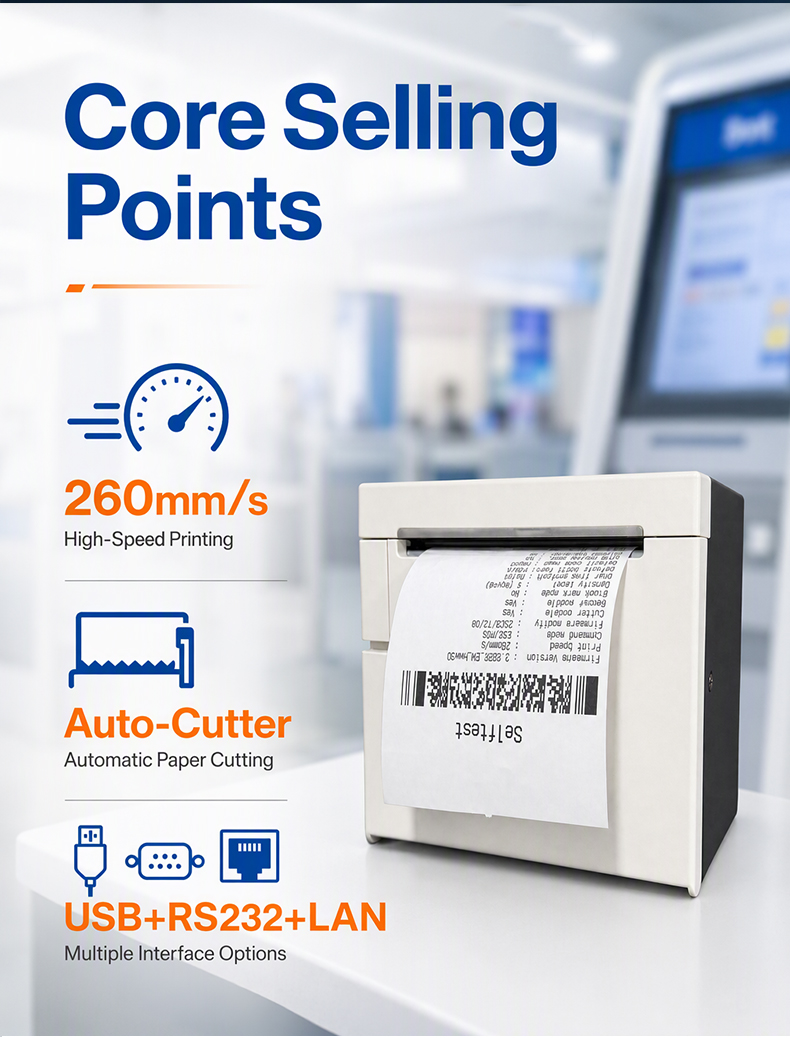

Main Features: compact size designed for self-service terminals / anti-mistake safety lock / all interfaces in one unit / 260 mm/s high-speed printing / QR code and 1D barcode printing / large character support / usable inside embedded systems or as a standalone printer.

Online consultation Datasheet

Product Details

Product Parameters

Model	ED3102
Printing Method	Direct thermal, line type
Resolution	203 dpi (8 dots / mm)
Print Width	80 mm max. / 72 mm default
Print Speed	Up to 260 mm/s (max.)
Paper Guide Plate (optional)	58 mm (57.5 +/- 0.5 mm) / 80 mm (79.5 +/- 0.5 mm)
Interfaces	USB + RS232 + LAN (Ethernet)
Paper Exit Direction	Front exit
Input Buffer	4 MB
NV Flash	256 Kbytes
Fonts	Font A 12 x 24 dots / Font B 9 x 17 dots
Chinese Characters	24 x 24 dots, GB18030 and Traditional BIG5
Japanese / Korean	JIS and KSC5601 character sets (optional)
User-defined Characters	Supported
Character Size	Font A 1.5 x 3.0 mm / Font B 1.1 x 2.1 mm / Simplified & Traditional Chinese 3.0 x 3.0 mm
1D Barcodes	UPC-A, UPC-E, EAN-13, JAN-8 (EAN-8), CODE39, ITF, CODABAR, CODE93, CODE128
2D Barcodes	PDF417, QR Code
Sensors	Paper-out, cover-open and over-temperature detection
Power Supply	AC 100-240 V, 50/60 Hz to DC 24 V / 2.5 A
Media	Thermal receipt paper, width 58 mm (57.5 +/- 0.5) or 80 mm (79.5 +/- 0.5), thickness 0.04-0.08 mm, roll diameter max. 82 mm, easy paper loading, automatic partial-cut
Operating Environment	5 - 45 deg.C, 10 - 90% RH (non-condensing)
Storage Environment	-20 - 60 deg.C, 10 - 90% RH (non-condensing)
Product Dimensions	127.9 (D) x 103.6 (W) x 129 (H) mm
Weight	Net 1.0 kg / Gross 1.7 kg
Service Life	Print head 150 km; auto cutter 2,000,000 cuts

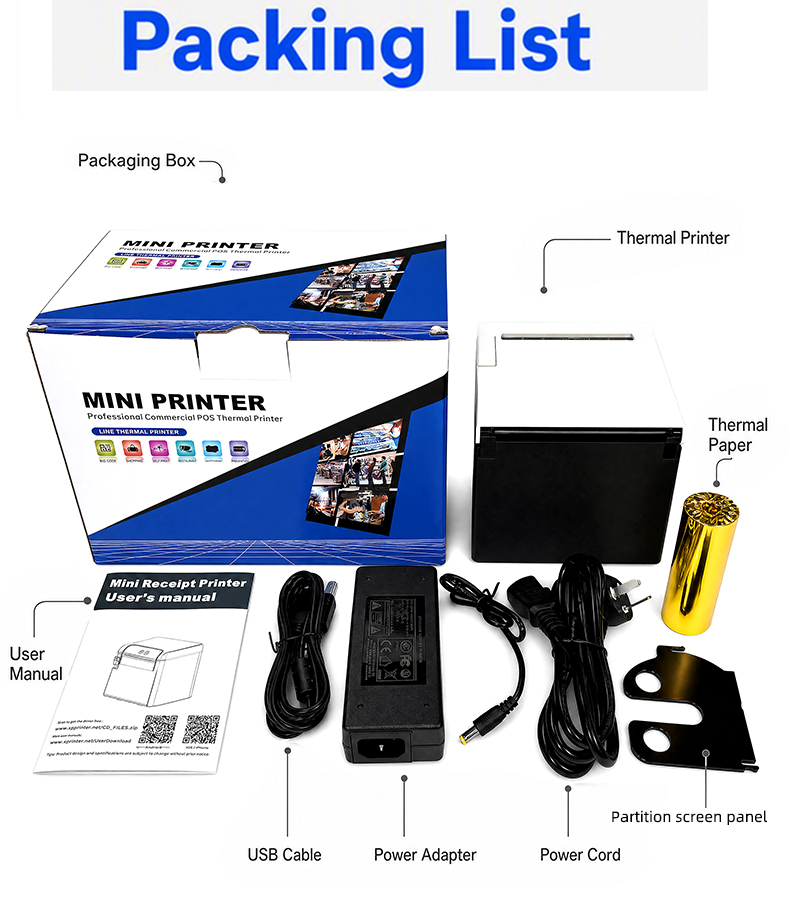

Accessories	USB cable, power adapter, power cord, paper roll, user manual, paper guide plates, serial cable (optional)
Packing	Inner box 1 pc, 230 x 155 x 144 mm; outer carton 12 pcs, 480 x 310 x 490 mm
Command Set	ESC/POS
Supported Systems	Windows / Linux / Mac
SDK	Android / iOS / Windows
Certifications	CCC, ROHS, CE
