EDOO F10 Long Distance Fixed Mount Embedded Scanning Module 1D Code CCD Barcode Reader Scanner Manufacturer in China

Key Specifications

Image sensor :CCD
Resolution ration: 2500
Interface: USB, RS232, PS/2
Warranty: 1-Year
SDK Provided: Yes
EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128,Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey

Product Description

The EDOO F10 is a fixed-mount 1D barcode scanner module for self-service kiosks, access gates and embedded equipment. It offers Interfaces USB, COM, PS/2; Scan speed 60scan/s. Covered by a 1-year warranty, backed by EDOO remote technical support, with ODM and OEM orders welcome.

Online consultation Datasheet

Product Details

Product Parameters

Performance	Image sensor		CCD
	Resolution ration		2500
	Max decoding speed		300 times/s
	Symbologies	1D	EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey
	Scanning precision*		≥3mil

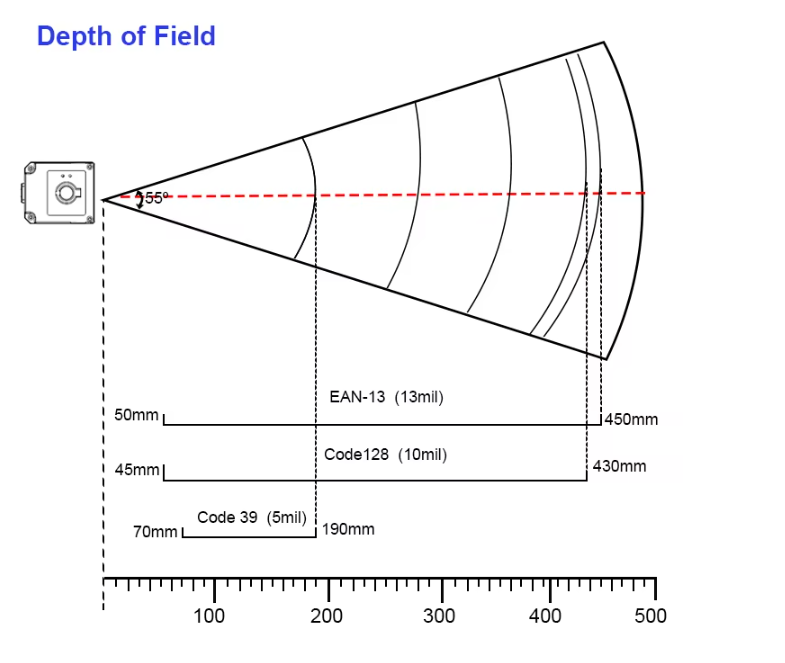

	Typical scanning depth of field*	Code 39	70mm~190mm (5mil)
		EAN-13	50mm~450mm (13mil)
		Code128	45mm~430mm (10mil)
	Symbol contrast*		≥20%
	Scanning sensitivity**		Skew ±55°,roll±60°
Mechanical	Communication		USB or RS232(optional)

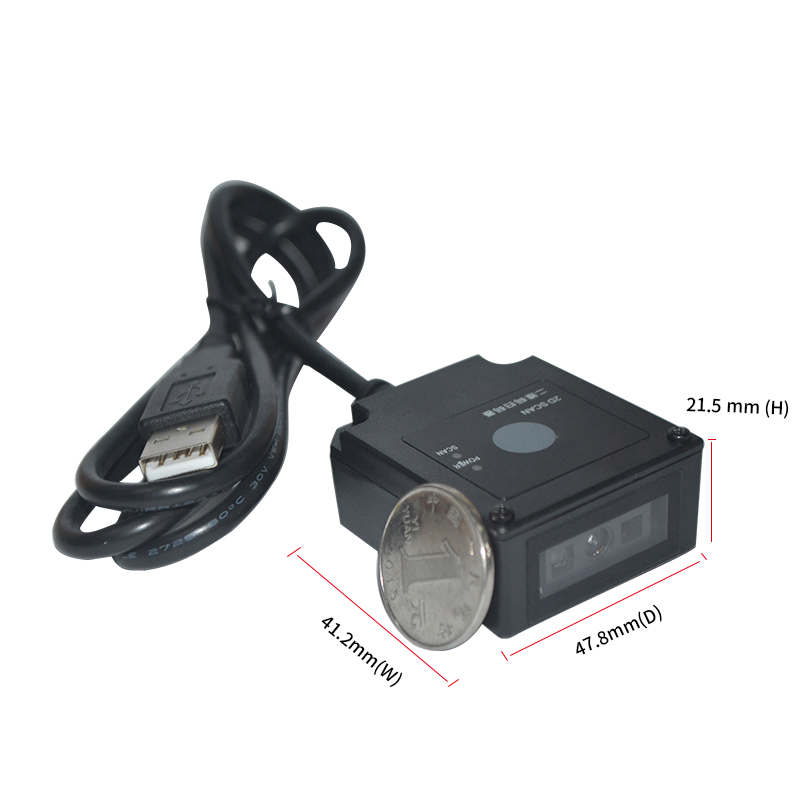

	Dimension(mm)		41.2(W)×47.8(D)×21.5(H) (max value)
	Weight		70g
Electrical	Operating voltage		5.0VDC±5%
	Rated power		86mW(typical value)
	current@3.3 VDC	operating	26mA(typical value),76mA(max value)
		standby	21mA
Environmental	Operating temperature		-20℃~55℃
	Storage temperature		-40℃~+70℃
	Operating humidity		5%~95%(no condensing)
	Illumination		0~100,000LUX
Certifications			FCC Part15 Class B,CE EMC Class B
Accessories	Development board		Development board has trigger key and beeper with RS-232 and USB output.
	Data cable	USB	USB cable
		RS232	RS232 cable
	Power Supply		Power adaptor is applicable to power on the development board with RS32 cable.
