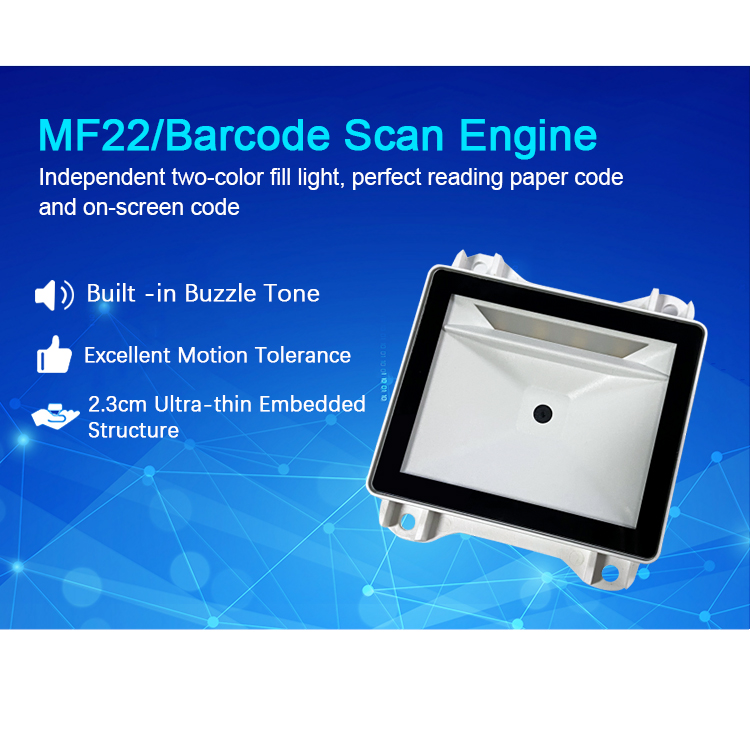

EDOO MF22 Embedded Barcode Scan Engine

Key Specifications

Decoder ：Dual CPU decoding
Scan Speed: 60 scan/s
Interface: TTL,RS232, PS/2, USB
Warranty: 1-Year
SDK Provided: Yes

Product Description

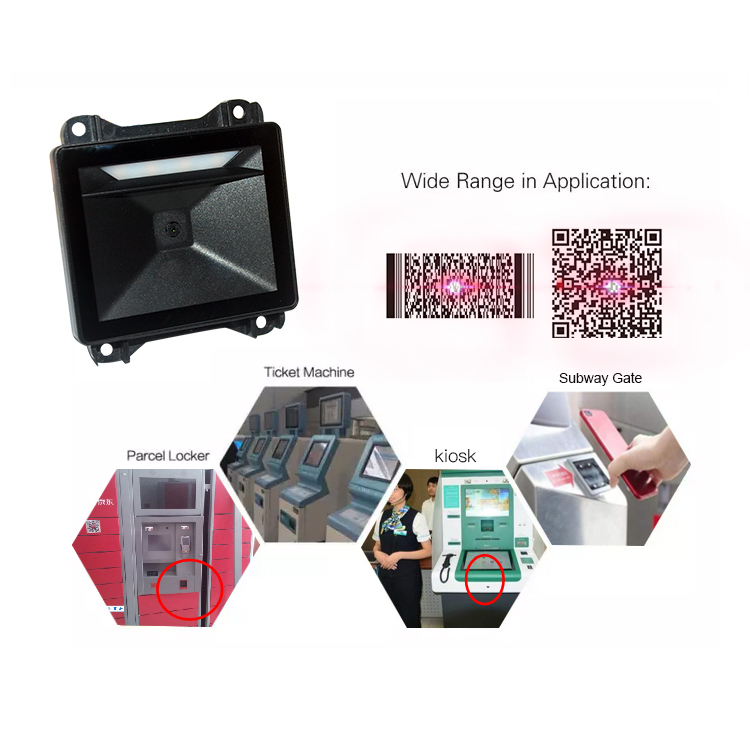

The EDOO MF22 is an embedded 2D barcode scan engine for kiosk,and access control systems, parcel lockers, ticket checkers, and various self-service devices. It offers Interfaces TTL ,RS232,PS/2, USB; , backed by EDOO remote technical support, with ODM and OEM orders welcome.

Online consultation Datasheet

Product Details

Product Parameters

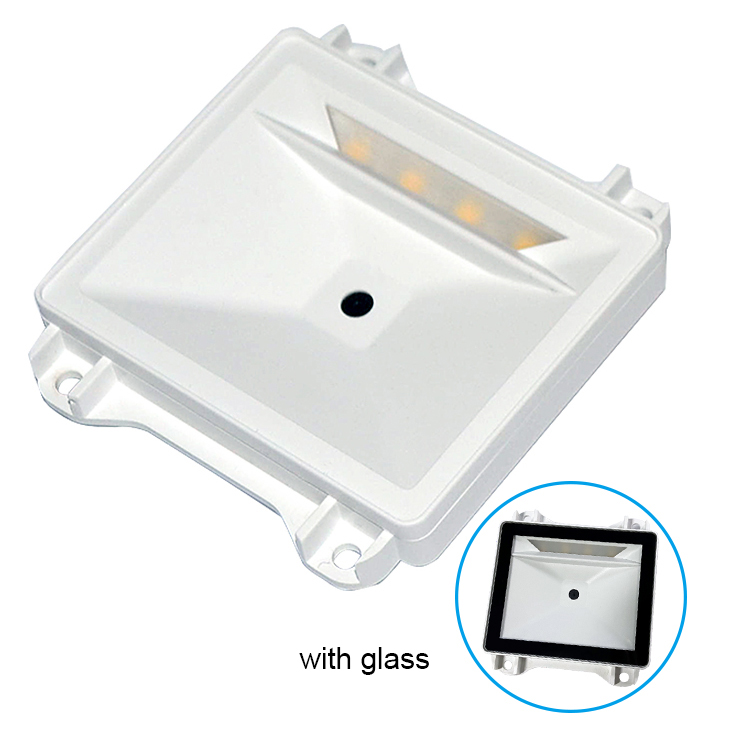

MF22/Barcode Scanner Module

Performance	Image Sensor		CMOS
	Pixel		640*480CMOS
	Symbologies	2D	PDF417, Data Matrix, QR Code
		1D	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar,Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93,UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11,Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey and so on
	Reading Precision		≥5mil
	Reading Sensitivity	Skew	±55°@ 0°Roll and 0° Skew
		Pitch	±360°@ 0°Pitch and 0° Skew
		Roll	±55 °@ 0°Roll and 0° Pitch
	Lowest Contrast		≥25%
	Data Interface		USB、TTL232、RS232（need customization）
	Field of View		Horizontal 68°，Vertical 51°
	Typical Depth of View		30-330mm （WeChat Payment Code, iphone6sp）

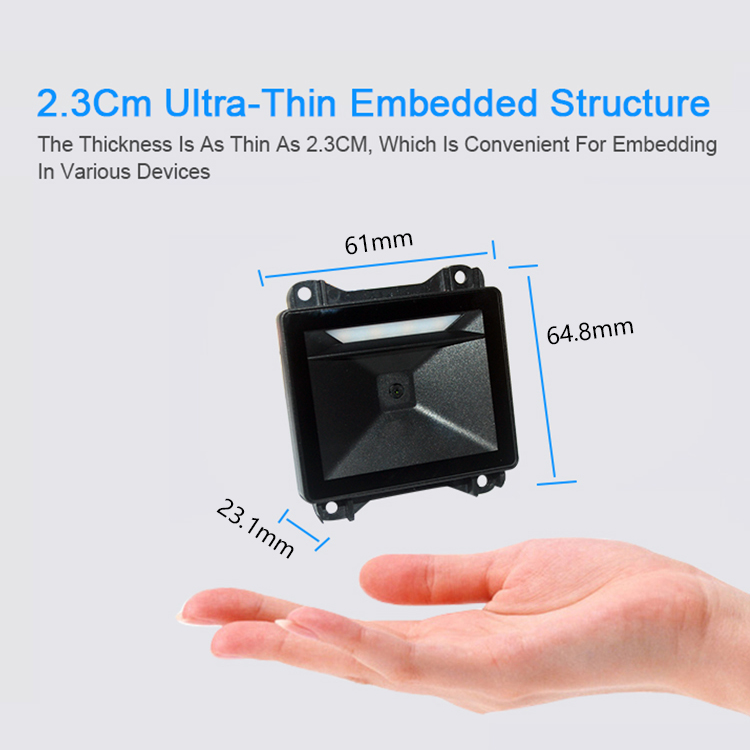

Physical	Size（LWH）		61.064.823.1mm
	Weight		40g（With tempered glass）
	Operation Voltage		5V±5%
	Current	Operation Current	140mA
		Idle Current	9.7mA
Environmental	Operation Temperature		-20℃~+50℃
	Storage Temperature		-40℃~+80℃
	Relative Humidity		5%~95%（Non-condensing）
	Static Protection		±14 kV（Air Discharge），±8 kV（Direct Discharge）
Certification			FCC Part15 Class B，CE EMC Class B
Accessory	Data Cable（Optional）	USB Cable	6PIN Dupond Interface, USB Cable
		RS232 Cable	6PIN Dupond Brand+DB9，2m Cable，0.5m USB Power Supply Cable
