EDOO E130 Fixed Mount Barcode Scanner Auto Focus Industrial AI Intelligent Barcode Reader for Automotive Electronics Traceability

Key Specifications

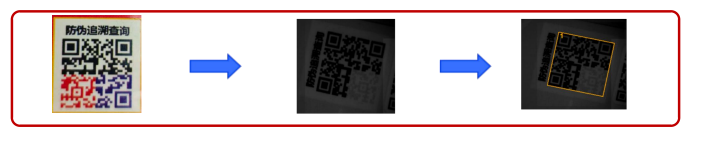

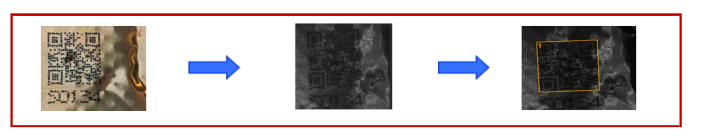

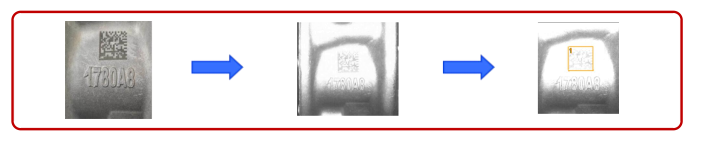

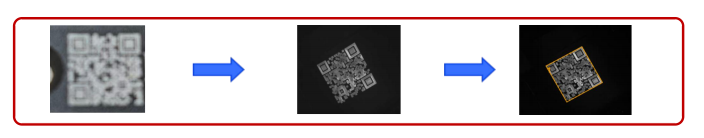

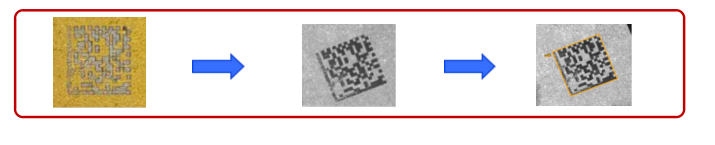

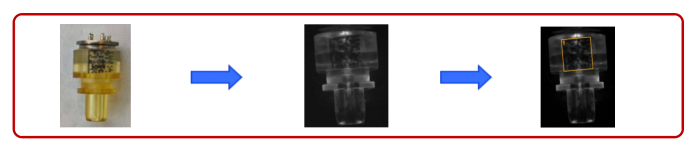

Superior decoding: fast, accurate reading on complex backgrounds, with AI filters for low-contrast, damaged or smudged codes
Flexible focus: liquid lens (6 / 12 / 16 mm) for fast, precise focus, or cost-effective manual focus for extreme temperatures

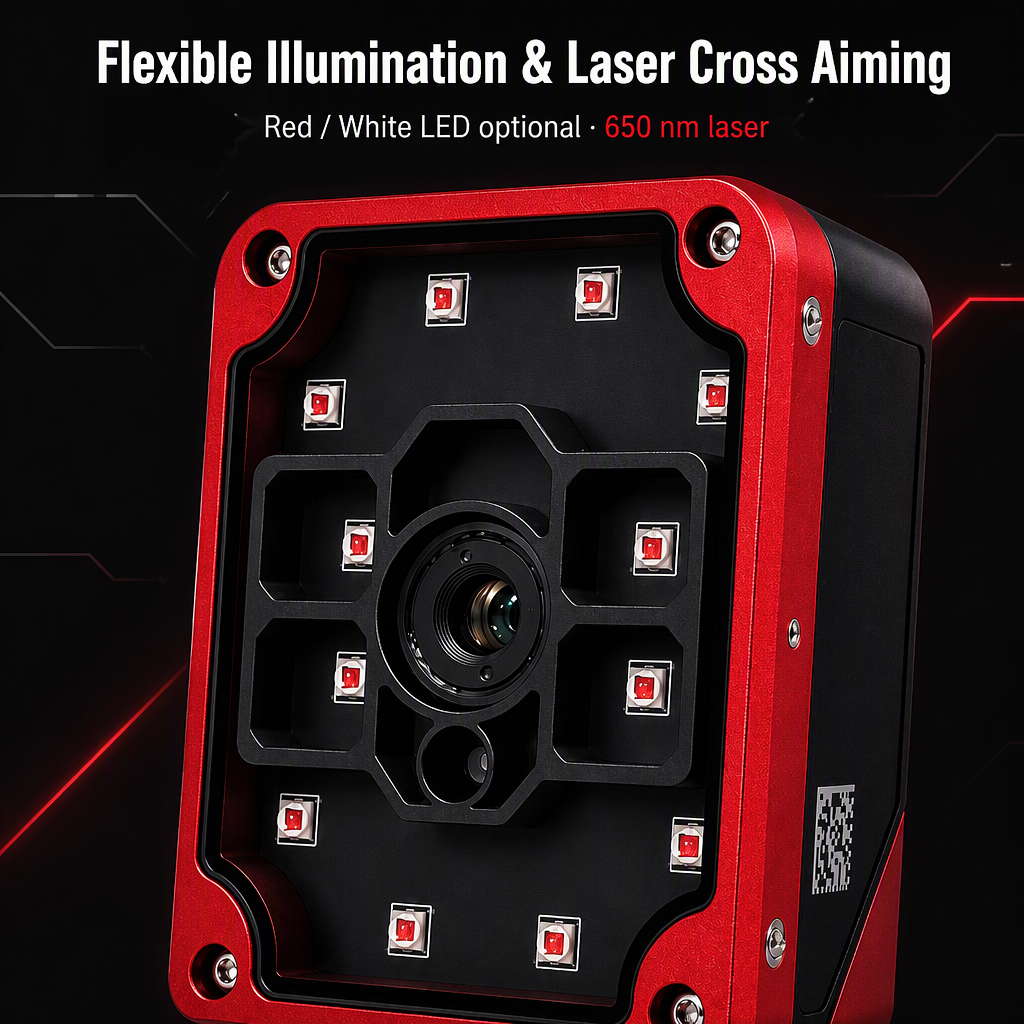

Innovative lighting: 12 group-controlled high-brightness LEDs, with a detachable cover for highlight, polarized and diffused modes
High speed: quad-core processor, 60 fps capture and up to 15 trigger responses per second
Graphical I/O: visual logic configuration for production lines and smart devices
Easy deployment: one-click tuning and multi-channel communication for online debugging
Industrial connectivity: built-in Profinet, MODBUS TCP, EIP and MC, Ethernet networking for 1-to-8 devices
Type: Fixed Mount Barcode Scanner
Scan Element: CMOS
Code Types: 1D, 2D & Stacked Barcodes
Communication Interface: Ethernet, Serial
Warranty: 1-Year
SDK Provided: Yes

Product Description

The EDOO E130 is an industrial fixed-mount barcode scanner for production-line traceability, automotive electronics and equipment integration. It reads 1D, 2D and stacked codes on a CMOS sensor with liquid-lens auto focus, and connects over Ethernet or serial using TCP/IP, Profinet, Modbus TCP, EtherNet/IP and FTP. Covered by a 1-year warranty, backed by EDOO remote technical support, with ODM and OEM orders welcome.

CMOS auto-focus reader | 1D, 2D & stacked codes | Ethernet + serial | Liquid lens 6/12/16 mm

Online consultation Datasheet

Product Details

Product Parameters

Model	E130
Type	Barcode Scanner
Scan Element Type	CMOS 1280*960
Lens Type	Liquid Lens (Auto Focus)
Supported Code Types	1D, 2D & Stacked Barcodes
Illumination	Red / White LED optional
Aiming	Laser cross aiming
Laser Wavelength	650 nm
Laser Beam Divergence	40° *31°
Roll / Tilt / Skew	60° (Roll), 65° (Tilt), 65° (Skew)
Communication Interface	Ethernet, Serial
Communication Protocol	TCP/IP, Profinet, Modbus TCP, EtherNet/IP, FTP
Scan Speed	600/s
SDK Provided	Yes
Private Mold	Yes
Application	Product traceability, equipment integration
Warranty	1-Year
After-sales Service	Return and Replacement, Repair, Free Spare Parts
Place of Origin	Guangdong, China
Package Size (LxWxH)	15 x 12.6 x 7.5 cm
Gross Weight	1.6 kg
Minimum Order Quantity	1 pcs

E130 Series /Al Intelligent Barcode Reader
Model	E130L-6M	E130L-12M	E130L-16M	E130
Performance
Type	Wide FOV Liquid Lens	Standard FOV Liquid Lens	Small FOV Liquid Lens	Manual Focus
Image Sensor	1/3 inch CMOS
Image Resolution	1280×960
Acquisition Speed	Up to 60 fps
Lens Type	Liquid Lens (Auto Focus)			Manual Focus
Lens Focal Length	6mm	12 mm	16 mm	7.5 mm
Field of View	45°(H),33.8°(V)	22°(H),16.5°(V)	15 ° (H), 11.25°(V)	37°(H),28°(V)
Roll /Tilt /Skew	360°(Roll),65°(Tilt),65°(Skew)
Trigger Mode	Command trigger;I/O trigger;continuous reading;key trigger,etc.
LED Indicators	4 LEDs(Power,Read OK,Read Fail,One-click Debug)
Illumination	12 LED beads,group-controlled;highlight /polarized light sources,etc.
Illumination Color	Red/White LED optional
Light-source Front Cover	Diffused /Polarized /Diffused+Polarized (with highlight source)
Aiming	Laser cross aiming
Laser Safety Class	Class 2
Laser Max Output Power	0.81 mW
Laser Wavelength	650 nm
Laser Pulse Duration	3.1 ms
Laser Beam Divergence	40°×31°
Communication Interface	Ethernet,Serial
Communication Protocol	Ethernet:TCP/IP,FTP,Profinet,Modbus TCP,EtherNet/IP;Serial:RS232
Power Supply	20～30V DC
Power Consumption	Standby:2.2W,Peak:12W,Average:4W
Working Current	Standby:110 mA,Peak:600 mA,Average:200 mA
Physical
Input Signals	2
Input Signal Type	NPN or PNP
Input Valid Voltage	NPN:≤16V,PNP:≥5V(Max:24V)
Output Signals	4
Output Load Capacity	Single max:100 mA @24VDC,total max:200 mA @24VDC
Housing Material	Aluminum alloy
Weight	192.5g (excl.cable)	195.4 g (excl.cable)	191.3 g (excl.cable)	196.3g (excl.cable)

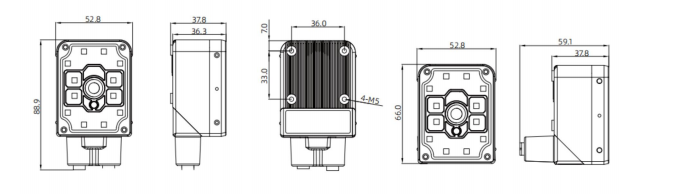

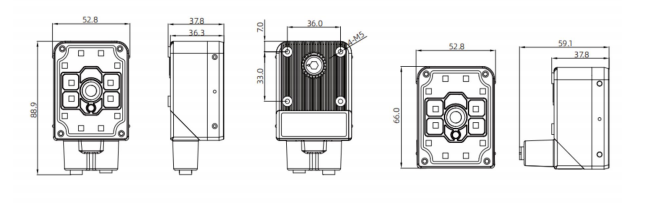

Dimensions (L×W×H)	88.9 mm×52.8 mm×37.8mm
Environmental
Working Temperature	-20℃~60℃
Storage Temperature	-40℃~70℃
Relative Humidity	5%～95%,non-condensing
Ambient Light Immunity	0～100,000 Lux
Vibration Resistance	Vibration:10～55 Hz,dual amplitude 0.75 mm,XYZ axes 3 h each
Protection Rating	IP65
ESD Protection	Air±16kV,Contact±8 KV			Air±8 kV,Contact±4 kV
Certification
Explosion-proof (specified models)	Ex ib IIA T4 Gb
Certifications	CE,UL,RoHS,etc.
Readable Symbologies	1D,2D and stacked codes conforming to national and international standards
Max Reading Precision	1D:1.67 mil 2D:2.5 mil	1D:1 mil 2D:1.5 mil	1D:0.67 mil 2D:1 mil	1D:1.6 mil 2D:2 mil
