EDOO R42 | Dual-CPU Wearable Ring Barcode Scanner
EDOO R42 | Dual-CPU Wearable Ring Barcode Scanner

EDOO R42 | Dual-CPU Wearable Ring Barcode Scanner

Key Specifications:

  • Processor: Dual-CPU architecture for parallel image processing (High Performance)
  • Scan Speed: 300 scans per second
  • Battery: 500mAh (supports 14 hours of continuous use)
  • Connectivity: Bluetooth 3.0+4.2, 2.4G Wireless, USB
  • Scan Element: CMOS
  • Optical Resolution: 640*480
  • Weight: 40g (Lightweight and portable)
  • Transmission Distance: 50m (open area)

Description:

The EDOO R42 is the next generation of wearable scanning. Featuring a Dual-CPU architecture, it ensures high stability and lightning-fast decoding. Its compact, finger-ring design is ideal for hands-free operations in logistics, warehousing, and inventory management.

EDOO R43 Ring Scanner


Online consultation Datasheet

Product Details

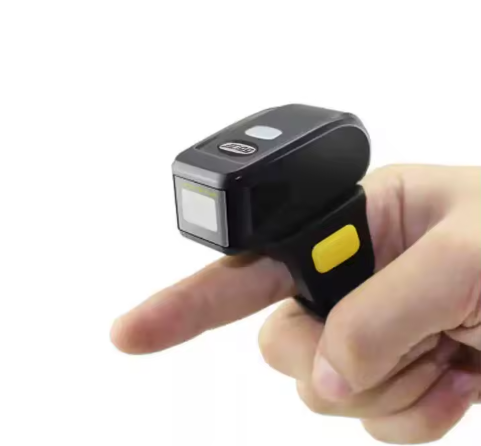

R42 wearable ring barcode scanner (photo 1)

R42 wearable ring barcode scanner (photo 2)

R42 wearable ring barcode scanner (photo 3)


R42 wearable ring barcode scanner (photo 4)

Image Sensor640*480(optional 1280 * 960)
Code recognition
system
2D: 2D: PDF417、QR Code (QR1/2, Micro)Aztec、Maxicode、Data Matrix
(ECC200, ECC000, 050, 080, 100, 140)
1D:
Code128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN,
UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Standard 25, Codabar,
Industrial 25, Code39, Code 93, Code 11, Plessey, MSI-Plessey,
GS1-DataBarTM(RSS) (RSS-14、RSS-Limited、RSS-Expand),Matrix 2
of 5 etc
Scan precision≥3mil
Depth of fieldEAN-13 60mm~350mm (13mil)
Code 39 40mm~150mm (5mil)
PDF 417 50mm~125mm (6.67mil)
Data Matrix 45mm~120mm (10mil)
QR Code 30mm~170mm (15mil)
Scanning anglePitch: ±60°; Roll: 360°; Skew: ±60°
PCS≥25%
InterfaceMicro USB, Bluetooth4.2, 2.4G
Bluetooth transmission distance50 meters (open area)
Physical dimension52.5×36.5×46.5mm(L×W×H)
Weight40g
Prompt methodSound, LED, and vibration
Battery information3.7V 500mAh rechargeable Li-ion battery
Usage hours per charge14hrs of continuous use(EAN13 barcode,scan and transmit the data every each 5 seconds)
Charging hours2hrs
Power supplyOutput: DC 5V, 2A input: AC100 ~ 240V, 50~60Hz
Operating temperature-20℃ to 50℃ (-4°F to 122°F)
Storage temperature-40℃ to 70℃ (-40°F to 158°F)
Operating humidity5%~95% (non-condensing)
ESD±8 KV (Contact discharge); ±15 KV (Air discharge)
Drop1.2m
Shell protectionIP54
