EDOO AI1580 | Portable Wireless WIFI BT Glove-style Barcode Scanner
EDOO AI1580 | Portable Wireless WIFI BT Glove-style Barcode Scanner

EDOO AI1580 | Portable Wireless WIFI BT Glove-style Barcode Scanner

Main Features

  • Model: AI1580

  • OS: Android 14.0

  • CPU: High-Performance ARM Cortex-A76 Eight-core 2.2GH

  • Memory:64GB ROM + 4GB RAM

  • Barcode Support: 1D, 2D, QR Code,Precision: >= 3mil
  • Communication: WIFI , Bluetooth 5.0
  • Battery: 2300mAH large capacity
  • Weight: 99g lightweight wearable design
  • Battery Life: 14 hours continuous use

  • IP 68

Application Scenarios

   In stores and warehouses: scenarios requiring hands-free operation and improved work efficiency, such as receiving, dispatching, inventory counting, adjustment, picking, checking, and Free your hands and improve work efficiency - AI1580 offers the best choice. As the lightest enterprise-grade wearable Android smart terminal, AI1580 features a modular design and weighs only 99 grams. It is lightweight, portable, and comfortable to wear, providing a truly integrated wearable Android scanning solution. Widely used in various scenarios where hands-free operation is required for efficient and safe work, it brings ultimate efficiency improvements and safe working conditions to enterprises. production line management.

Online consultation Datasheet

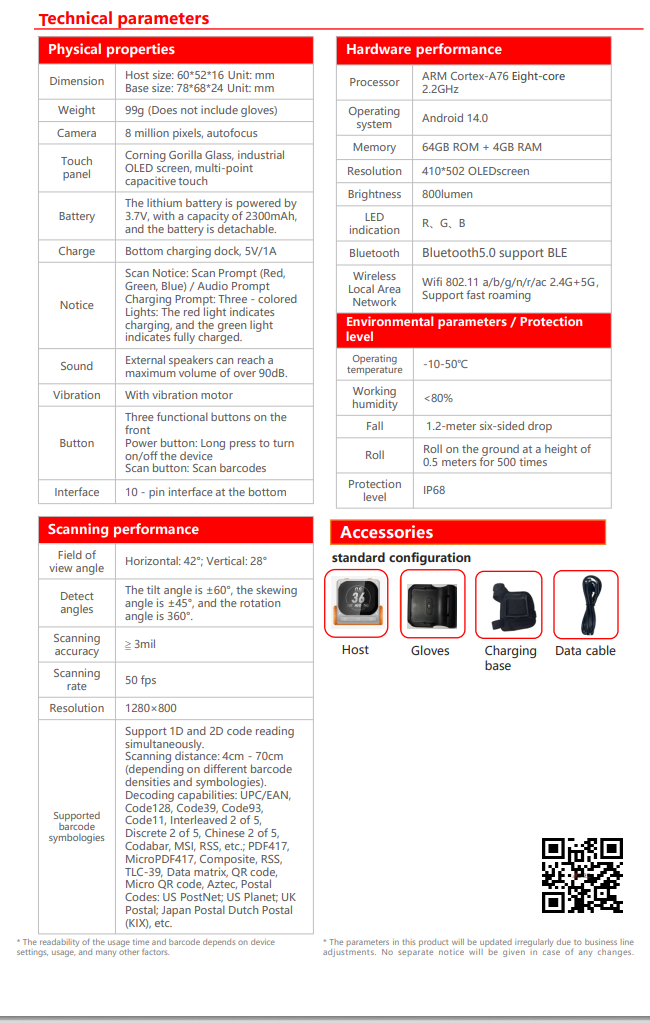

Product Details




Physical properties

Dimension

Host size: 60*52*16  Unit: mm

Base size: 78*68*24  Unit: mm

Weight

99g (Does not include gloves)

Camera

8 million pixels, autofocus

Touch

panel

Corning Gorilla Glass, industrial

OLED screen, multi-point

capacitive touch

Battery

The lithium battery is powered by

3.7V, with a capacity of 2300mAh,

and the battery is detachable.

Charge

Bottom charging dock, 5V/1A

Notice

Scan Notice: Scan Prompt (Red,

Green, Blue) / Audio Prompt

Charging Prompt: Three - colored

Lights: The red light indicates

charging, and the green light

indicates fully charged.

Sound

External speakers can reach a

maximum volume of over 90dB.

Vibration

With vibration motor

Button

Three functional buttons on the

front

Power button: Long press to turn

on/off the device

Scan button: Scan barcodes

Interface

10 - pin interface at the bottom


Scanning performance

Field of

view angle

Horizontal: 42°; Vertical: 28°

Detect

angles

The tilt angle is ±60°, the skewing

angle is ±45°, and the rotation

angle is 360°.

Scanning

accuracy

≧3mil

Scanning

rate

50 fps

Resolution

1280×800

Supported

barcode

symbologies

Support 1D and 2D code reading

simultaneously.

Scanning distance: 4cm - 70cm

(depending on different barcode

densities and symbologies).

Decoding capabilities: UPC/EAN,

Code128, Code39, Code93,

Code11, Interleaved 2 of 5,

Discrete 2 of 5, Chinese 2 of 5,

Codabar, MSI, RSS, etc.; PDF417,

MicroPDF417, Composite, RSS,

TLC-39, Data matrix, QR code,

Micro QR code, Aztec, Postal

Codes: US PostNet; US Planet; UK

Postal; Japan Postal Dutch Postal

(KIX), etc.

Hardware performance

Processor

ARM Cortex-A76 Eight-core

2.2GHz

Operating

system

Android 14.0

Memory

64GB ROM + 4GB RAM

Resolution

410*502 OLEDscreen

Brightness

800lumen

LED

indication

R、G、B

Bluetooth

Bluetooth5.0 support BLE

Wireless

Local Area

Network

Wifi 802.11 a/b/g/n/r/ac 2.4G+5G,

Support fast roaming

Environmental parameters / Protection level

Operating

temperature

-20-50℃

Working

humidity

<80%

Fall

1.2-meter six-sided drop

Roll

Roll on the ground at a height of

0.5 meters for 500 times

Protection

level

IP68



EDOO AI1580 wearable glove barcode scanner
