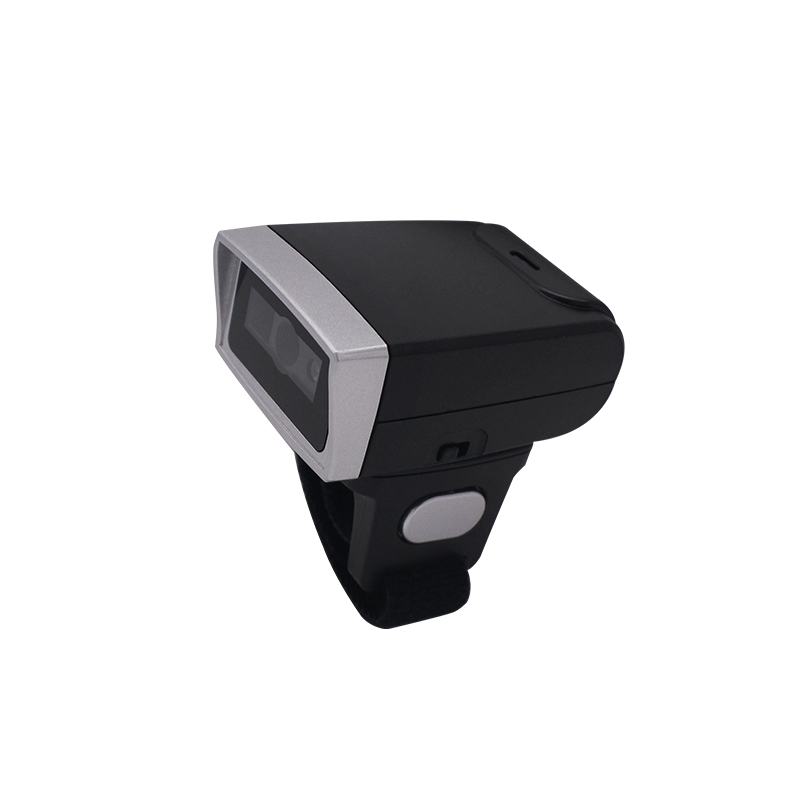

R41-21 Ring Wearable Wireless Barcode Scanner

Name: R41-21 Ring Wearable Wireless Barcode Scanner
Brand: EDOO
SKU: EDOO-26

Main Features:

- Portable ring-wearing wireless connection

- Core UIMG decoding technology

- 4.0 Bluetooth transmission

Via Bluetooth 4.0 Class 1 wireless technology, it can be paired with any Android, iOS or Windows device.

- Small enough to fit into your pocket and light enough to carry around all day

- High efficient and cost-saving

Scenarios:

Retail store management, logistics and inventory management, distributor warehouse management and more.

Online consultation Datasheet

Product Details

Features:

Core Technology

Adopt self-developed 5th generation of core UIMG decoding technology, it can read virtually any barcode from paper or screen. The 2D device has been equipped with a laser aimer with a red cross to make barcode reading easier and faster.

4.0 Bluetooth transmission

Via Bluetooth 4.0 Class 1 wireless technology, it can be paired with any Android, iOS or Windows device five times

Can be used anywhere, anytime.

Small enough to fit into your pocket and light enough to carry around all day, providing you with the convenience of always having a scanner at your fingertips.

Green low consumption

Adopt the self-developed core technology, largely reduces power consumption, extend the device lifetime.

Scenarios:

Mobile payments, e-coupons/e-vouchers, retail store management, inventory management, distributor management and more.

Scenarios:

Mobile payments, e-coupons/e-vouchers, retail store management, inventory management, distributor management and more.

R41-21/Bluetooth Ring Barcode Scanner

Performance	Image sensor		CMOS
	Pixel		640*480 CMOS
	Illumination		LED with white light
	Symbologies	2D	PDF417,QR Code,Data Matrix
		1D	Code 128,EAN/UPC,Interleaved 2 of 5,Matrix 2 of 5,Industrial 25,Code 39,Codabar,Code 93,Code 32Code 11 ,MSI-Plessey,GS1-Databar
	Scan precision		≥5mil
	Scan sensitivity	skew	±65°@ 0°Roll and 0° Skew
		pitch	±360°@ 0°Pitch and 0° Skew
		roll	±60°@ 0°Roll and 0° Pitch
	Field View		Horizontal 28°,vertical 21.5°
	Scan depth of field		Code 39 (typical)
			5mil 6-8cm
			15mil 4-15cm
Physical	Dimension(LWH)		53.237.551mm(attached picture 1)
	Weight		Net weight: 38g,gross weight: 108.9g(including USB cable/package)
	Notification		Beeper, LED
Electrical	Voltage	Operating voltage	5VDC±5%
	Current	Operating current	210mA
		Standby current	70mA
		Storage capacity	Max storage 130000 pieces of 13 bits commodity code
Data interface	Wireless 2.4G		Wireless 2.4G receiver, to connect with the device and information-receiving host, transmission distance up to 100m(wide and empty area)
	Bluetooth		HID mode,SPP mode,BLE mode
	Bluetooth		transmission distance up to 50m(wide and empty area)
	USB		USB data cable, to connect with the device and information-receiving host and charging.
	Storage temperature		-40℃~+70℃ (-40°F~176°F)
	Relative humidity		5%~95%(no condensing)
